Progress indicators

Last updated on April 9, 2026

An illustration of the progress bar and progress circle components

A progress bar or progress circle visualizes the progress of a process or operation.

On this page:

Get this component:

How to use this component

Progress indicators are used to visualize the progress of a process or operation. They are commonly used in:

  • Loading screens or interstitials
  • Upload or download interfaces

Use a progress indicator to communicate to the user that something is happening in the background. They can also be used in to communicate progress towards completion in a multi-step process like a form.

Structure and behaviour

Progress bar

Anatomy

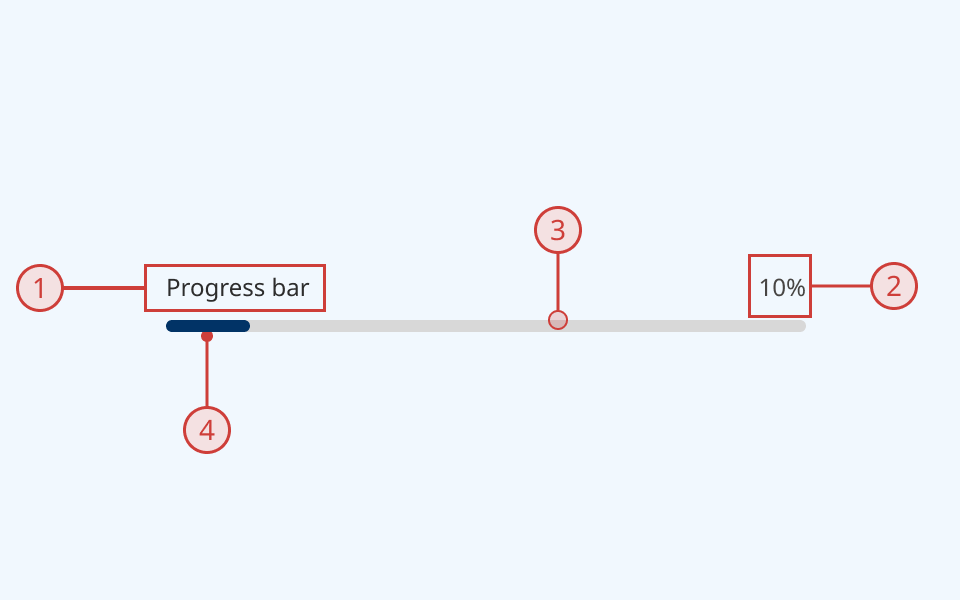

An annotated diagram of the progress bar component

  1. Text label
  2. Value label
  3. Progress bar track, illustrating total length of process
  4. Progress bar fill, illustrating progress towards completion

Behaviour

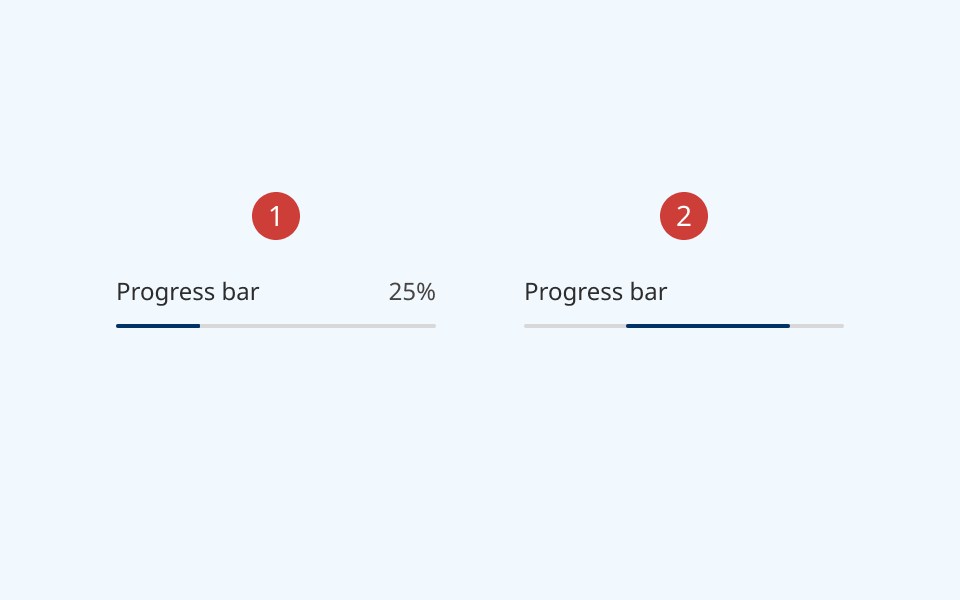

An illustration of the progress bar component's behaviour

  1. Determinate mode: track fills linearly from left to right
    • Value label is displayed to provide additional context
  2. Indeterminate mode: partial fill loops from left to right until completion
    • No value label is displayed

Progress circle

Anatomy

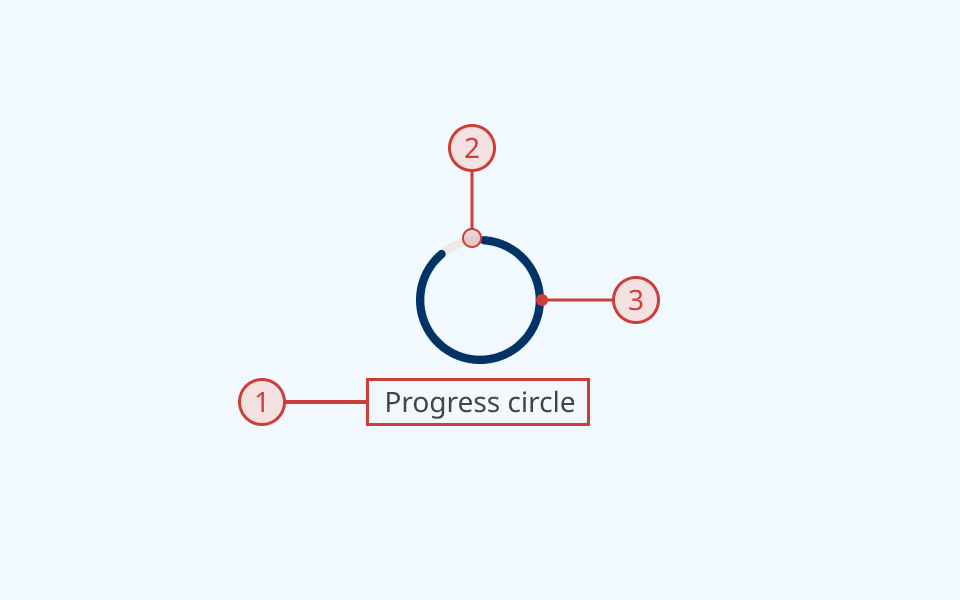

An annotated diagram of the progress circle component

  1. Text label
  2. Progress circle track, illustrating total length of process
  3. Progress circle fill, illustrating progress towards completion

Behaviour

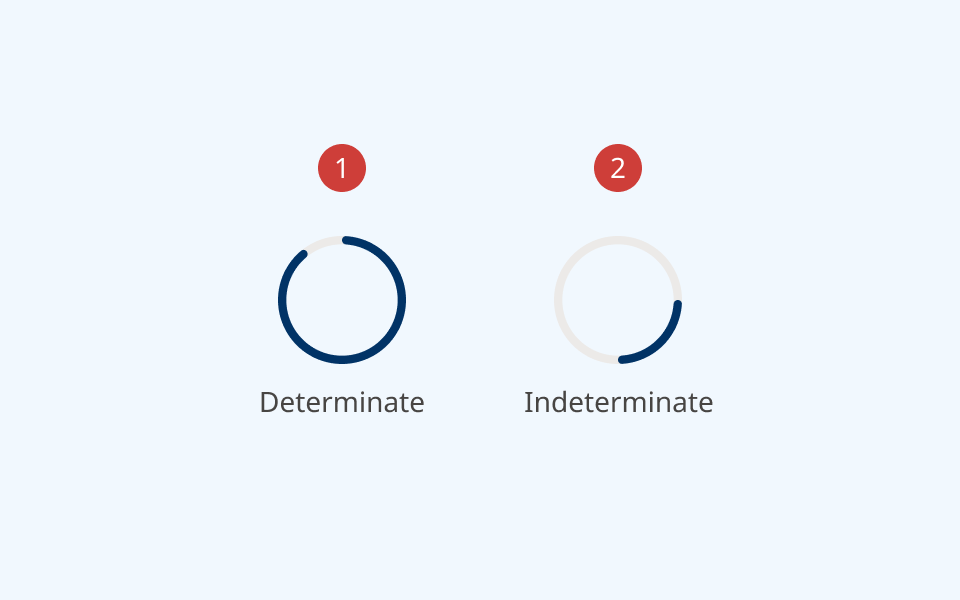

An illustration of the progress circle component's behaviour

  1. Determinate mode: track fills linearly in clockwise direction
  2. Indeterminate mode: partial fill loops indefinitely in clockwise direction until completion

Design guidance

Design system components are published in a Figma library. Install the library and add it to your project to start using this component.

Get the design library in Figma

The design system provides two progress indicator components:

  • Progress bar: a horizontal bar
  • Progress circle: a circular loader, useful when space is limited

Progress indicators can be either:

  • Determinate: progressing linearly from left to right, from 0% to 100%
  • Indeterminate: looping indefinitely until completion

Use a descriptive label to communicate what is happening. Do not display multiple progress indicators at the same time.

Technical information

Detailed technical documentation, interactive previews and code samples are published in the B.C. Design System Storybook.

View this component in Storybook

Reference implementations of the progress bar and progress circle components in React are published in the React components library. Install the package via npm to start using the components.

Events and props

Both components are styled versions of the React Aria ProgressBar.

Refer to the React Aria documentation to understand its structure and API.

Accessibility

These summaries reflect the component used as provided. If you modify it, confirm that your changes comply with the Web Content Accessibility Guidelines (WCAG). B.C. government digital services are required to meet the WCAG Level AA standard.

Accessibility checklist for the progress bar and progress circle components
Requirement WCAG Success Criterion Validation
Make sure visual formatting is represented in the backend code 1.3.1 (Level A)

Label and progress bar/circle are automatically associated via an aria-labelledby attribute
Enhance visual contrast for user interface and graphics 1.4.11 (Level A) Contrast ratio between the progress bar track and fill exceeds 3:1
Support user preferences for motion, and eliminate unnecessary motion effects 2.3.3 (Level AAA)

Indeterminate state respects prefers-reduced-motion, replacing the looping animation with an alternative slow fade/pulse
Make sure components can be read and used by assistive technology 4.1.2 (Level A)

The progress bar/circle is automatically associated to its label via an aria-labelledby attribute, and has the "progressbar" role
